Oil-filled Potentiometer
Model Number	OF50
Standard Resistance Range	100 Ohm to 100k Ohm
Max. Practical Resistance Value	200k Ohm
Total Resistance Tolerance	Standard Class ±10% (K) Precision Class ±5% (J)
Independent Linearity Tolerance	Standard Class ±10% Precision Class ±5%
Power Rating	5.0W
Noise	Below 100 Ohm E.N.R.
Electrical Travel	280° ± 5°
Mechanical Travel	300° ± 5°
Insulation Resistance	Over 100M Ohm at 1,000V.D.C.
Dielectric Strength	1 minute at 1,000 V.A.C.
Starting Torque	Below 30mN•m (300gf•cm)
Stopper Strength	Approx. 0.9N•m (9kgf•cm)
Resist. Temperature Coefficient of Wire	±20p.p.m./°C
Mass	Approx. 300g

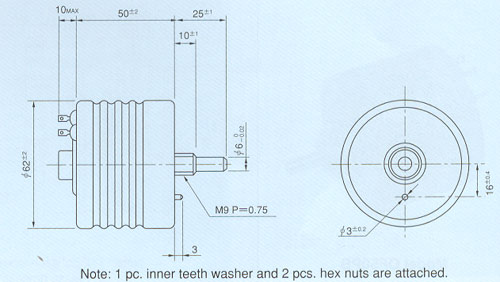

Standard Dimensions	Click here to see
