Japanese Style Resistors



Metal-Clad Wirewound Resistor

MHL Type

Dimension:
click here to see

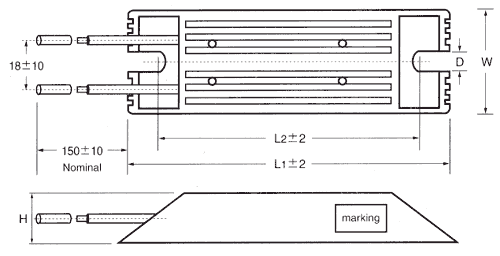

External Dimensions:
TYPE
DIMENSION (mm)
MAX
weight
(g)
L1
L2
W
H
D
MH 60
115
100
40
20
5.3
110
MH 80
140
125
40
20
5.3
160
MH 100
165
150
40
20
5.3
200
MH 120
190
175
40
20
5.3
240
MH 150
215
200
40
20
5.3
290
MH 200
165
150
60
30
5.3
460
MH 300
215
200
60
30
5.3
750
MH 400
265
250
60
30
5.3
930
MH 500
335
320
60
30
5.3
1100
MH 1000
400
385
100
50
5.3x2
2800
