Japanese Style Resistors



Metal, Anodized Aluminum Resistor

AH Type

Dimension:
AH-25, AH-50

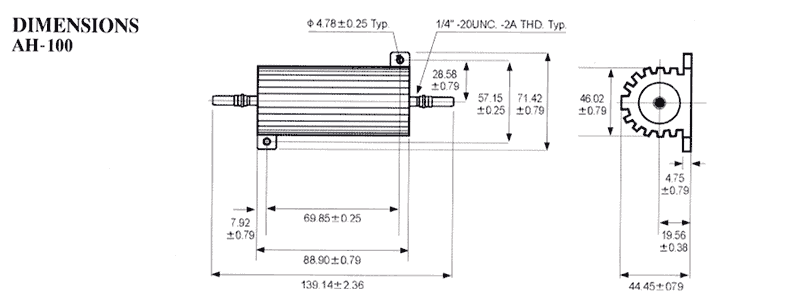

  AH-100

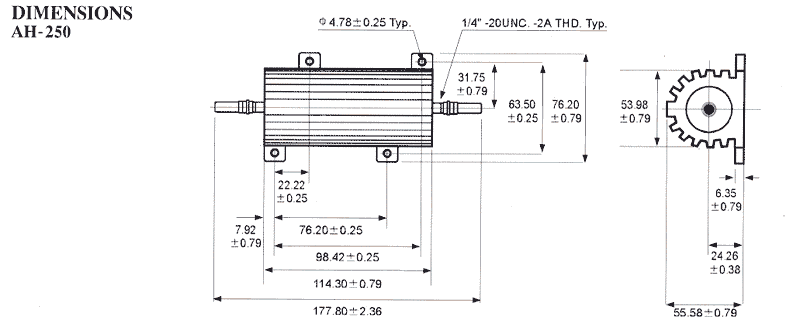

  AH-250

TYPE
DIMENSION (mm)
L1
L2
± 1
L3
± 0.8
A
± 1
B
± 0.8
C
± 1
D
± 0.1
E
± 0.3
H
± 1
h
± 1
T
± 0.2
AH-25
49
27
18.3
27.2
19.8
14
2.2
3.2
14
6.5
2
AH-50
70
50
39.7
29.2
21.5
16
2.2
3.2
16
7
2
