Japanese Style Resistors



Tubular Ceramic Adjustable Resistor

CH-0S Type

Features:

••
Strong terminals (4.5~20KG/30SEC)
••
Resistance Value unchanged afer long-term use
••
Multi-terminal types or adjustable types available

Performance:
••
Resistance temp. coeff ±400, 260, 100PPM/ °C
••
Short time over load ± (2% ± 0.05 Ohm)
••
Insulation resistance 500V 20MOhm min
••
Voltage withstanding 1000V for 1 min

Dimension: Click here to see

Silicone coating TYPE
RESISTANT RANGE
( )Adjustable type

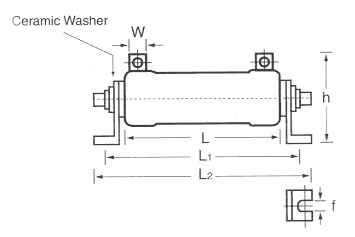

DIMENSION (mm)
O TYPE
S TYPE
OS TYPE
Special Type
with
Ceramic coating
L
D
d
g
W
d1
f
L1
L2
L1
L2
h
L1
L2
h
CH 30W
0.1 Ohm ~ 30K(3.3K)
75
19
10
20
5
4.1
85
105
93
101
38
101
111
38
CH 40W
0.1 Ohm ~ 40K(4.9K)
90
19
10
20
5
4.1
100
115
108
116
38
116
126
38
CH 50W
0.1 Ohm ~ 50K(5.6K)
75
30
16
32
8
5
5.2
89
110
100
117
58
115
131
58
CHT 75W
CH 60W
0.1 Ohm ~ 60K(7K)
90
30
16
32
8
5
5.2
104
120
115
132
58
130
146
58
CHT 90W
CH 80W
0.1 Ohm ~ 80K(10K)
115
30
16
32
8
5
5.2
129
150
140
157
58
155
171
58
CHT 120W
CH 100W
0.1 Ohm ~ 100K(12K)
140
30
16
32
8
5
5.2
154
173
165
182
58
180
196
58
CHT 150W
CH 120W
0.1 Ohm ~ 120K(15K)
163
30
16
32
8
5
5.2
179
200
188
207
58
203
221
58
CHT 180W
CH 150W
0.1 Ohm ~ 150K(16K)
195
30
16
32
8
5
5.2
209
230
220
237
58
235
251
58
CHT 225W
CH 200W
0.1 Ohm ~ 200K(24K)
254
30
16
32
8
5
5.2
268
288
279
296
58
294
310
58
CHT 300W
CH 250W
0.1 Ohm ~ 250K(30K)
303
30
16
32
8
5
5.2
319
340
328
347
58
343
361
58
CHT 375W
CH 300W
0.1 Ohm ~ 300K(50K)
254
45
28
47
15
9.15
270
294
314
90
309
330
90
CHT 450W
CH 400W
0.1 Ohm ~ 400K(60K)
330
45
28
47
15
9.15
345
379
390
90
385
406
90
CHT 600W
CH 500W
0.1 Ohm ~ 500K(80K)
303
55
35
52
15
9.15
318
343
363
95
358
378
95
CHT 750W
CH 600W
0.1 Ohm ~ 600K(90K)
330
55
35
52
15
9.15
385
405
95
CHT 850W
CH 750W
0.2 Ohm ~ 750K(100K)
390
55
35
52
15
9.15
445
465
95
CHT 1000W
CH 1000W
0.2 Ohm ~ 1M(120K)
500
55
35
52
15
9.15
555
575
95
CHT 1500W
CH 1500W
0.5 Ohm ~ 1.5M(150K)
500
69
40
60
15
9.15
584
608
130
CHT 2250W
CH 2000W
0.5 Ohm ~ 2M(200K)
650
69
40
60
15
9.15
734
758
130
CHT 3000W
